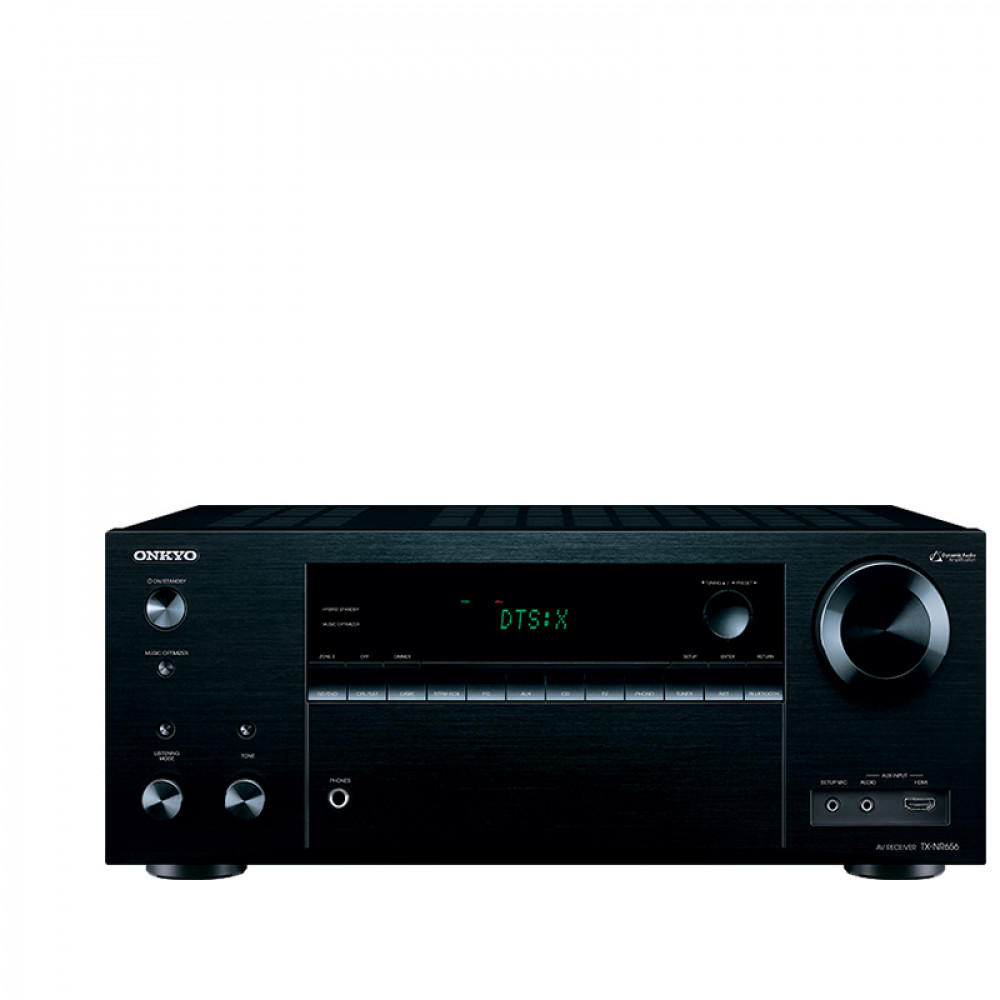

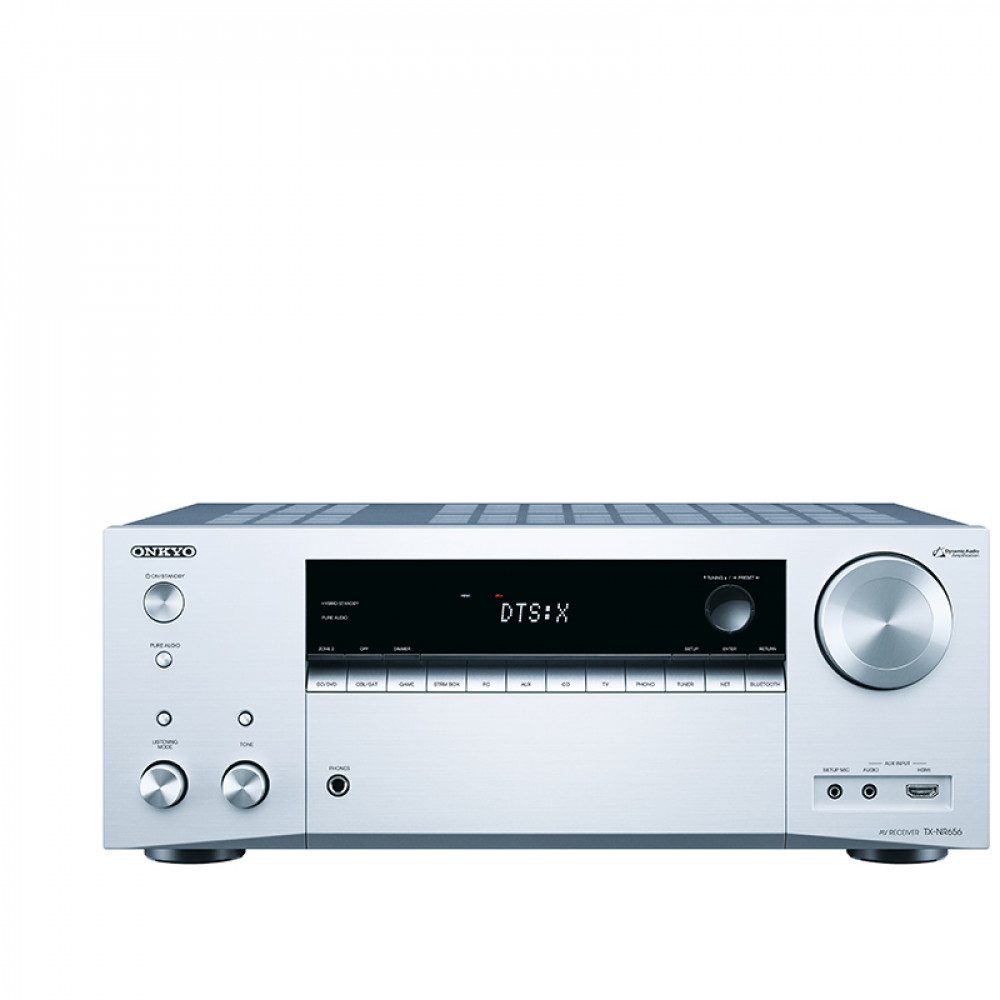

Receiver Onkyo TX-NR656

TX-NR656 este un A/V receiver 7.2 capabil sa propuna pana la 160 de W putere pe canal in 6 Ohmi.

SPECIFICATII:

DTS:X™* and Dolby Atmos® up to 5.1.2 Channels

Wireless Audio Streaming with Google Cast™ and AirPlay

Bluetooth Audio / Wi-Fi® with Spotify and Tidal

HDMI® 8 In / 2 Out Including 1 Front (HDCP 2.2 / HDR)

Dynamic Audio Amplification for Realistic Sound

AccuEQ Room Calibration with AccuReflex Technology

FireConnect™ Multi-Room Technology

Phono Input and Hi-Res Audio Playback

384 kHz/32-bit Hi-Grade DAC

* Firmware update required

ADVANCED FEATURES

DTS:X™ New-Generation Sound Format Ready

Supports Dolby Atmos® Format for Exciting Multidimensional Sound

4K/60 Hz-Capable 4:4:4 HDMI® Terminals for UltraHD Entertainment*1

Supports HDCP 2.2 and HDR for Future 4K/Full HD Video Streaming and Broadcast*2

Built-in Wi-Fi® Certified Wireless LAN Capability

Bluetooth Version 2.1 + EDR Capability (Compatible Profile: A2DP v1.2, AVRCP v1.3) with Advanced Music Optimizer DSP Technology

Internet Radio and Music Streaming Subscription Services Included (TuneIn Radio, Pandora®, Spotify, Tidal, and Deezer)*3

Play Compressed, Lossless, and Hi-Res Audio via Local Network (MP3, WMA, WMA Lossless, FLAC, WAV, AAC, Apple Lossless, DSD 5.6 MHz, and Dolby® TrueHD)

Digital and Analog Audio Transmission to Optional Wireless Speaker via FireConnect™ Technology (Firmware update required)

AccuEQ Room Calibration Featuring AccuReflex Technology for Seamless Object-based Sound from Compatible Speakers (Mic Included)

Advanced Music Optimizer to Improve Compressed Digital Audio Quality (Bluetooth Audio Included)

Control and Stream with Free Onkyo Remote Streaming Apps for iPod touch/iPhone*4 and Android™ Devices*5

Powered Zone 2 and Zone 2 Line Out for Distributed Analog/Digital Audio Playback in Another Room

Bi-Amping Capability for Front Channels

*1 6G video is supported on HDMI inputs 1/2/3, Main Out, and Sub Out. *2 HDCP 2.2 is supported on HDMI inputs 1/2/3, Main Out, and Sub Out. *3 Availability of services depends on region. Some services may require a paid subscription and firmware update. Availability of third-party services advertised here is accurate at the time of publication, but may be subject to change without notice. *4 Compatible with iPod touch (3rd generation or later) and iPhone 3GS or later. All models require iOS 4.2 or later. *5 Requires Android 2.1 or later.

AMPLIFIER FEATURES

160 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC);175 W/Ch (6 Ω, 1 kHz, 10% THD, 1 Channel Driven, JEITA)

Dynamic Audio Amplification for a Thrilling Audio Experience

H.C.P.S. (High Current Power Supply) Massive High Power Transformer

High Current Amp Design to Effectively Drive the Speakers

Non-Phase Shift Amp Circuits for Realistic Imaging

VLSC™ for a Clear Audio Experience

Optimum Gain Volume Circuitry

PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio

PROCESSING FEATURES

HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos®, Dolby® TrueHD, DTS:X™, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC

Dolby® TrueHD and DTS-HD Master Audio™ Decoding

AK4458 384 kHz/32-bit DAC (8 Channels x 1)

32-bit Digital Signal Processing Engines

4 DSP Modes for Gaming: Rock, Sports, Action, and RPG

Theater-Dimensional Virtual Surround Function

CinemaFILTER™

Direct Mode

Double Bass Function

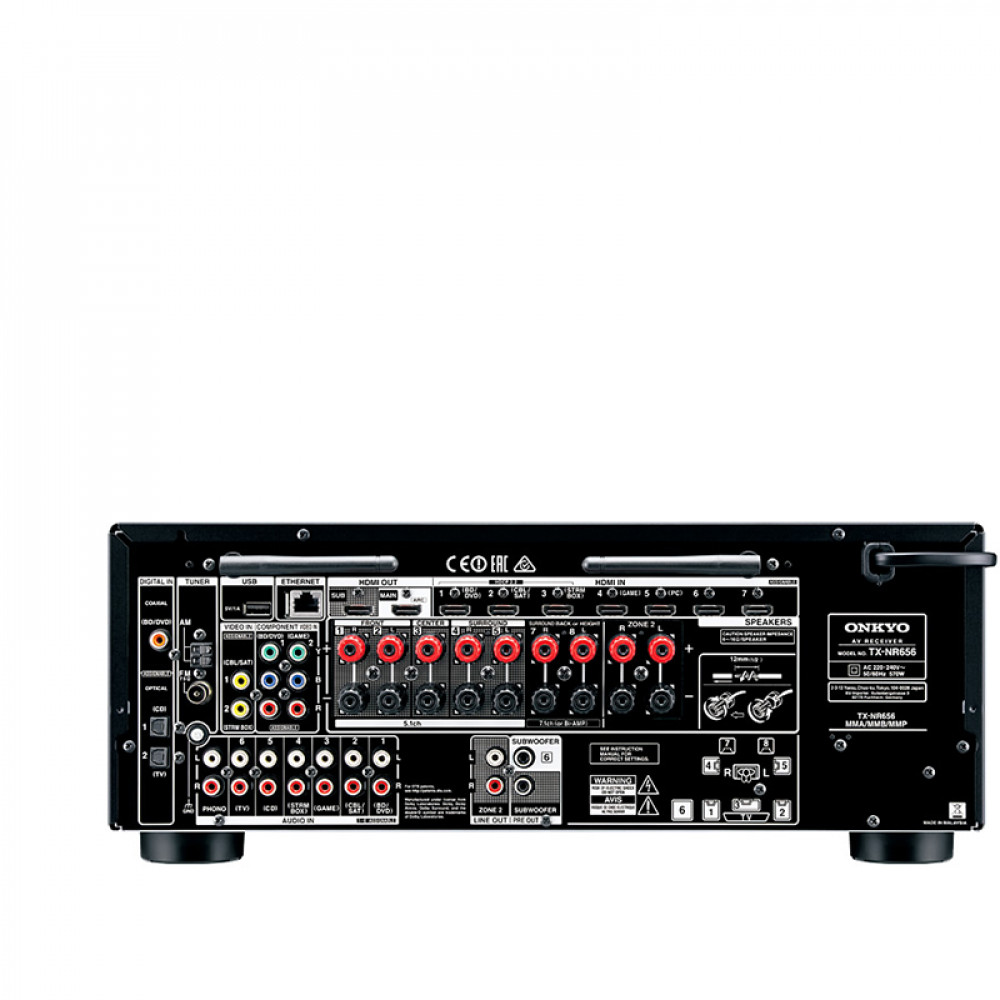

CONNECTION FEATURES

8 HDMI Inputs (1 Front/ 7 Rear) and 2 Outputs

USB 2.0 Port

Mass Storage Class USB Memory Playback Capability

2 Component Inputs

2 Composite Video Inputs

3 Digital Audio Inputs (2 Optical and 1 Coaxial)

8 Analog Audio Inputs (1 Front*/7 Rear)

Phono Input for Turntable Connection

2 Parallel Subwoofer Pre-Outs

Location-Numbered Speaker Terminals

* 3.5mm pin jack type.

OTHER FEATURES

Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/180/200 Hz)

A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)

Graphical Overlaid On-Screen Display (OSD) via HDMI with Quick Set-Up

Hybrid Standby Function with HDMI Passthrough

Tone Control (Bass/Treble) for Front L/R Channels

3-Mode Display Dimmer (Normal/Dim/Dimmer)

40 FM/AM Random Presets

Firmware Updates via Ethernet and USB

RIHD (Remote Interactive Over HDMI) for System Control

Simple Remote Control

Tip Echipament: Multicanal (Home Cinema)

DTS:X™* and Dolby Atmos® Ready

Discover the best in object-based surround-sound with Dolby Atmos® and DTS:X™. Free from the traditional channel-based audio bed, sound flows above and around you in three dimensions for a movie and gaming experience that will take your breath away.

* Firmware update required

Wireless Audio Playback with Google Cast™* and AirPlay

TX-NR656, now with Google Cast™* and AirPlay, frees your music from your smartphone. You can stream your music stored in your phone or using Google Cast™ / AirPlay Compatible apps.

* Google Cast™ enabled via future firmware update. Please consult the Onkyo website for firmware update scheduling information.

Bluetooth Audio / Wi-Fi® with Spotify and Tidal*

In addition to Google Cast™ and AirPlay, stream virtually any audio from your smartphone, tablet, or PC to your home cinema for clear and powerful sound. Available internet radio and music subscription services include Pandora, Spotify and more.

* Support for some services including TIDAL and Deezer will be enabled via future firmware update. Please consult the Onkyo website for scheduling information as it becomes available.

FireConnect™ Multi-room Audio

A firmware update enables any audio source connected to the receiver—from vinyl to streaming audio—to be sent wirelessly via FireConnect™ to an optional speaker* placed anywhere in your home. Stable, fast, and easy to control with a mobile, it′s the smart way to set audio free.

* Unavailable at press time. Release date TBA. FireConnect™ by Blackfire Research Corp. is a stable wireless protocol that mirrors any audio source connected to the receiver—from vinyl to streaming audio—. Firmware update required.

HDMI® 8 In / 2 Out Including 1 Front (HDCP 2.2 / HDR)

Select HDMI terminals support 4K/60 Hz, as well as HDCP 2.2 and HDR for next-generation UltraHD streaming and broadcasting.

Dynamic Audio Amplification for Clear and Realistic Sound Reproduction

Power your speakers like never before with Onkyo′s Dynamic Audio Amplification. Sound comes alive thanks to accurate, noise-free signal processing and hi-current power that dynamically controls your speakers for precise, authentic audio reproduction.

Powered Zone 2 for Audio Playback in Second Room

TX-NR656 has Powered Zone 2 capability to bring audio to a second room connected to your A/V Receiver. Now with dedicated Zone 2 DAC, you can bring Digital Audio input sources such as Spotify to a second room.

Play Everything from Vinyl to Hi-Res Audio

Onkyo A/V receivers feature a dedicated Phono input for turntable connection as well as universal Hi-Res compatibility for ease of use. Use the remote app to locate your 192/24 and 96/24 albums (including 5.6 MHz DSD playback) on PC or NAS and bask in the clarity, depth, and detail of high-resolution music.

384 kHz/32-bit Hi-Grade DAC

A premium-quality AK4458 digital-to-analog converter from AKM unlocks the full potential of any audio format with unique low-distortion filtering technologies for clear sound.

AccuEQ Calibration Featuring AccuReflex Technology

AccuEQ equalizes the surround-sound to suit the room acoustics for crisply focused sound, while AccuReflex aligns the phase of upfiring “height” speakers with the sound coming directly from your other speakers. Any delay is resolved so that everything arrives at your ears at the same time. The result is cohesive reproduction of object-based soundtracks.
