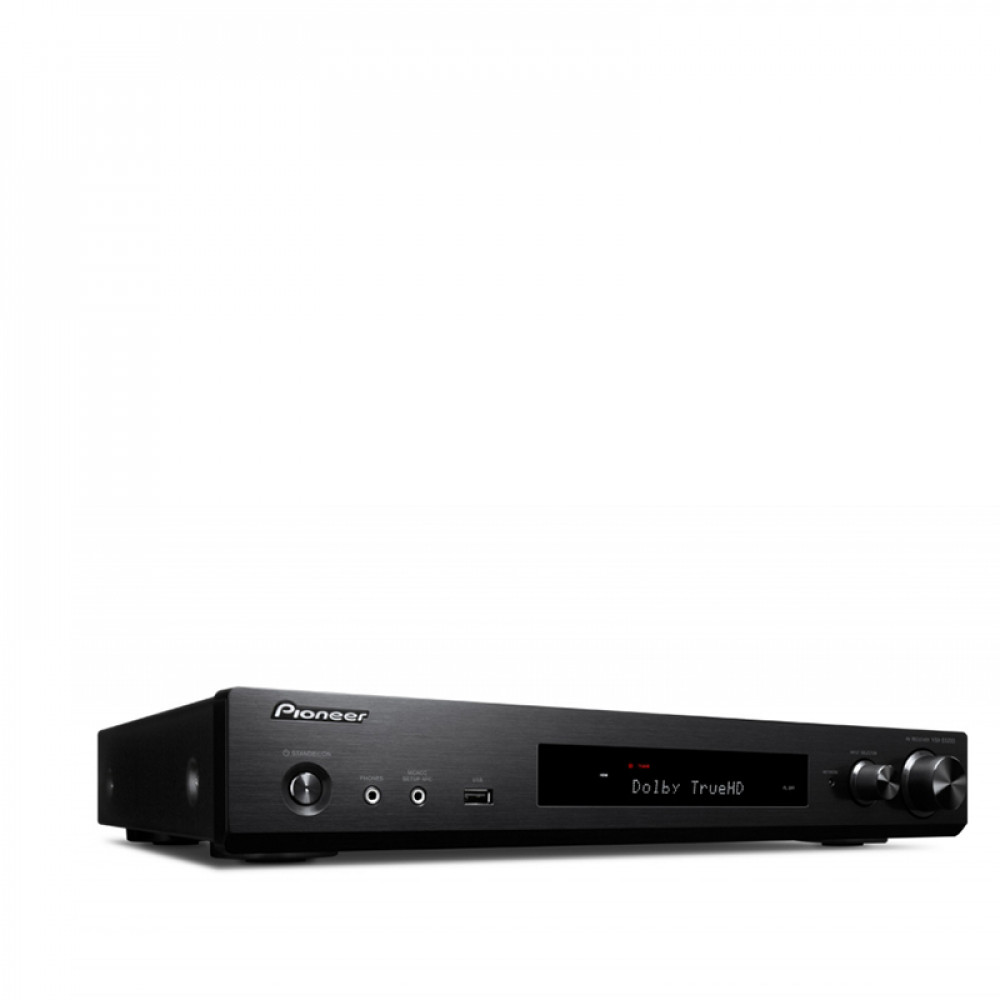

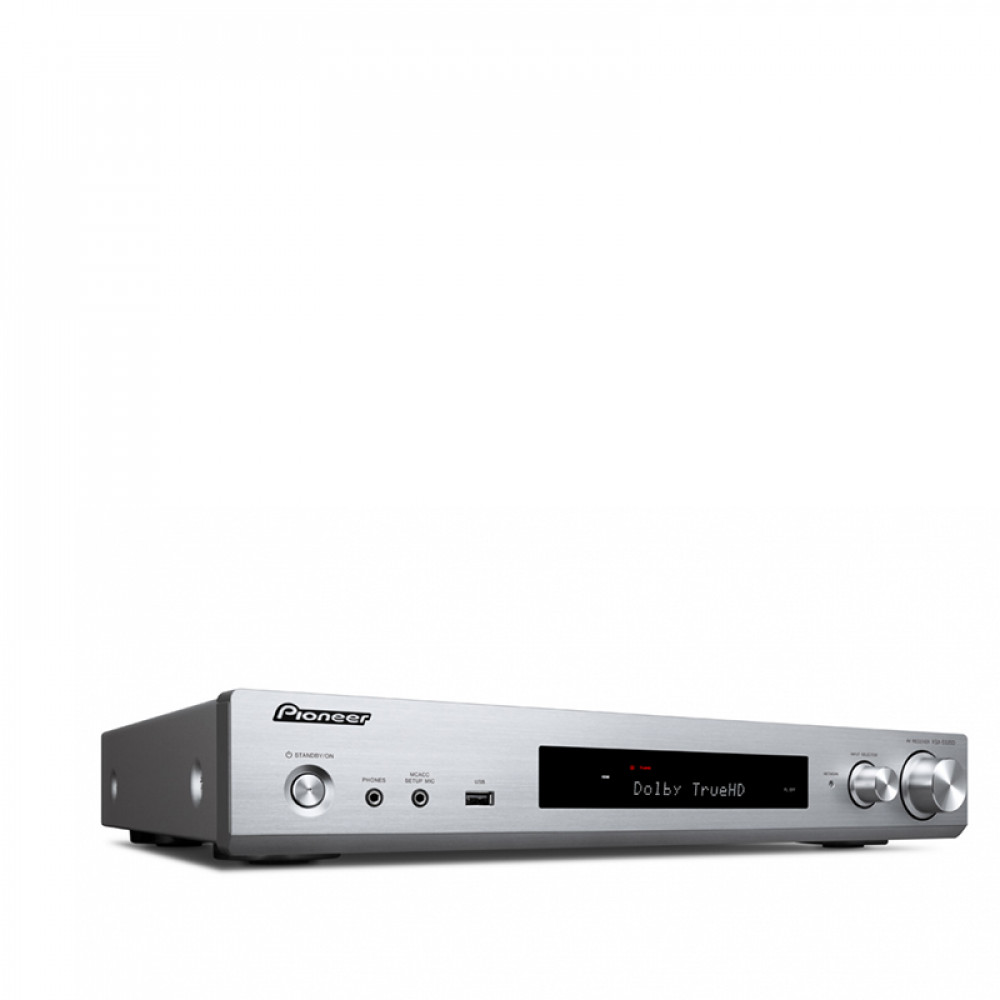

RECEIVER AV SLIM PIONEER VSX-S520D

Specificatii:

Channels: 6

Amplification Type: Class D

80 W/ch (4 ohms, 1 kHz, THD 1.0 %, 1ch Driven)

Dolby® TrueHD/Dolby Digital Plus/Dolby Pro Logic II

DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS96/24/DTS-HD Express/DTS Neo:6 5.1

DSD Playback via Network/USB (5.6 MHz/2ch 2.8 MHz/2ch)

DSD Disc (SACD) Playback via HDMI (2.8 MHz/5.1ch, 2ch)

Digital Core Engine with Cirrus Logic (Quad Core) x1

HDMI Audio Return Channel (ARC)

MCACC Auto Room Tuning

• Phase Control

• Subwoofer EQ (4 Band)

Advanced Sound Retriever (2ch)

Advanced Surround Modes• Classical, Unplugged, Entertainment Show, Drama,

• Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround, Auto Surround

DAB/DAB+ Tuner

FM (RDS) Tuner 40 Presets

VIDEO FEATURES

Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)

HDR and BT.2020 Support

Ultra HD Upscaling (1080p 4K)

3D Ready (Blu-ray Disc™, Broadcast, and Games)

Deep Colour (36-bit), “x.v.Colour”

NETWORK FEATURES

FireConnect™ for Multi-room Audio

Google Cast

Apple AirPlay Certified

Spotify®, Tidal, and Deezer Music Streaming Services Ready

Internet Radio (TuneIn)

Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz)

Built-in Bluetooth® Wireless Technology (Version: 4.1, Profile: A2DP/AVRCP, Codec: SBC/AAC)

Hi-Res Audio File Playback via USB/Network

• Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV

• 5.6/2.8 MHz DSD Playback

OPERATING FEATURES

Works with Pioneer Remote App (iOS/Android)

New GUI with System/Network Setup Menu

Auto Power Off in HDMI Standby Through

Sleep Timer

User-Friendly Simple Remote Control

CONNECTIONS

Front Terminals

USB 1 In for USB Drive

MCACC Setup MIC In

Phones 1 Out

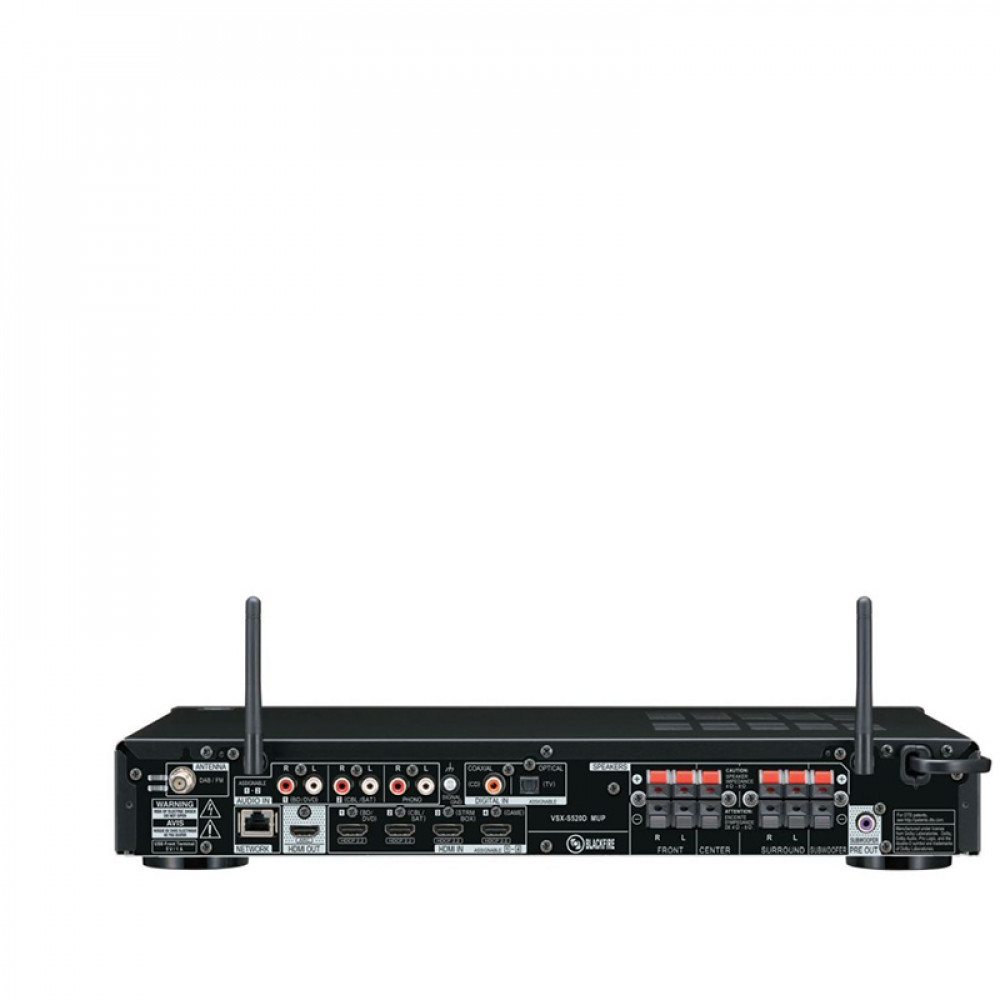

Rear Terminals

HDMI 4 In

HDMI 1 Out (ARC)

Ethernet 1 In

Audio 2 In (Assignable)

Phono (MM) 1 In

Digital Coaxial 1 In (Assignable)

Digital Optical 1 In (Assignable)

Subwoofer 1 Pre Out

Speaker 6 ch Out (FRONT, CENTER, SURROUND, SUBWOOFER)

FM/DAB Tuner Antenna

DIMENSIONS & WEIGHT

Dimensions (W x H x D): 435 x 70 x 325 mm

Weight: 4.0 kg

Tip Echipament  Multicanal (Home Cinema)

SUPER-FLAT AV RECEIVER WITH A FULL LIST OF FEATURES

Modern multi-channel speaker sets do not have to be big. Even very discreet, compact 5.1 systems readily create an enthralling cinema atmosphere in the living room that is simply not possible with sound bars, let alone TV speakers. The matching AV receiver should be as flat as possible but also of high quality − a role that is played perfectly by the VSX-S 520 D. With its housing height of just 65mm, it matches current Blu-ray players like the BDP-X 300. It is available in three different colours to coordinate with any TV model and interior decorating style. Class D output stages developed by Pioneer guarantee rich performance with six 80-watt channels notwithstanding the flat design − enough to adequately power even high-end speakers. In order to take full advantage of their sound even in problematic rooms, the MCACC automatic calibration system unerringly and effectively corrects problems with the acoustics. And since the VSX-S 520 D looks best with the fewest possible devices around it, Pioneer simply integrated the music sources: DAB digital radio, high-resolution DLNA streaming, Internet radio, the Spotify, Tidal and Deezer subscription services, AirPlay and Bluetooth ensure that this discreetly styled entertainment professional never runs out of material.
