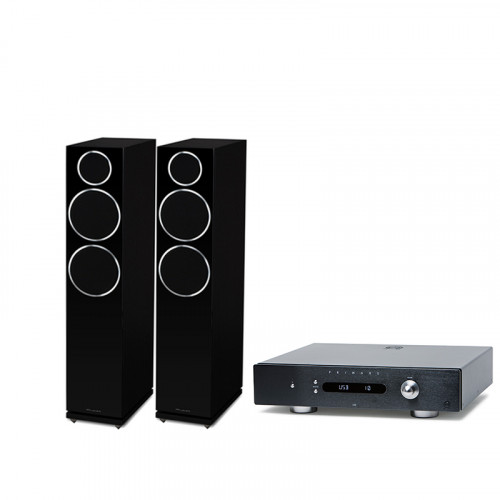

Amplificator integrat Primare I22 + Boxe Wharfedale Diamond 230

Nota 0.0 din 0 recenzii ale clientilor
din 0 recenzii ( Scrie o recenzie )

Cod produs: FH4LT

Acest produs nu mai face parte din gama actuala a producatorului.

Pachetul este format din:

Dimensiuni          430 x 420 x 106 mm

Greutate              10 kg

Putere RMS         2x 80W at 8Ω, 2x 160W at 4Ω

Raspuns in frecventa       10Hz – 20kHz, -0.5dB

THD       0.05%, 20Hz – 20kHz, 10W at 8Ω

Impedanta output            RCA 94Ω

Optional              Optional DAC Board: 1x USB-B input 1x Digital Optical input (1 TOSLINK) 1x Digital Coaxial input (1 RCA jack)

Signal to noise ratio         95dB

Culori    Black / Titanium



It is designed to provide high power output with very low distortion and system control.


An optional DAC board is available for the I22, comprising three digital inputs for the upgrading of existing CD players via their digital outputs, and the streaming of music files from PCs and Macs. There is an isochronous USB-B input (16-24bit data at 44.1 to 96kHz), a TOSLINK connector (16-24 bit data at 44.1-192kHz) and SPDIF (16-24bit/44.1-192kHz). Specialised processing at the Isochronous USB-B input re-clocks the incoming data for reduced jitter and greater bit resolution through the DAC, optimising sound quality from music files.

CD 22 nu este inclus in pret.


Output Power 2x 80W at 8Ω, 2x 160W at 4Ω

Analogue Inputs 4 pair RCA (L & R)

Optional DAC Board:

1x USB-B input

1x Digital Optical input (1 TOSLINK)

1x Digital Coaxial input (1 RCA jack)

Input Impedance 15kΩ

Analogue Record Output 1 pair RCA (L & R)

Pre Out 1 pair RCA (L & R)

Output Impedance RCA 94Ω

Frequency Response 10Hz – 20kHz, -0.5dB

THD + N < 0.05%, 20Hz – 20kHz, 10W at 8Ω

Signal to Noise -95dB

Power Consumption Standby: 0.3W; Operate: 19W

Dimensions (wxdxh) 430 x 420 x 106 mm

Net weight 10 kg

Gross weight 12.5 kg

Colour Options Black and Titanium presents the soundstage in a clear and upfront manner. Because the three drive units integrate so well it sounds very sophisticated considering the price â˜…★★★★ - Diamond 230 Review, Hi-Fi Choice

Quite simply put, the Wharfedale Diamond is one of our most successful speaker series, if not one of the most successful hi-fi speaker series ever. We can justify this as year on year, the Diamond Series has broke the mould for combining award winning sound quality unforeseen at this price.

From 1982 Wharfedale Diamond has meant one thing − impeccable performance at an affordable price. Today we are pleased to bring you the latest series of loudspeakers from Wharfedale that aspires to this tradition − Diamond 200 Series.

Foremost in the design criteria for Diamond 200 is the ongoing research into loudspeaker driver sound quality. The speaker series uses our famous woven Kevlar cone form, drawing influence from the flagship Jade Series.

While honing the internal crossover and using stronger magnets on the rear of the Diamond 220 for example, aesthetics and construction have been improved too. The Diamond 200 Series benefits from an all new lacquered front baffle and cosmetically enhanced veneers.

Only when the acousting tests are deemed truly satisfying are the loudspeakers designs signed-off for production, ensuring that each speaker model fulfils its eventual owner's drwams of musically enjoyable reproduction from Britain's Most Famous Loudspeakers.


General description 2.5-way floorstanding speaker
Enclosure type bass reflex
Transducer complement 2.5-way
Bass driver 165mm Woven Kevlar Cone
Midrange driver 165mm Woven Kevlar Cone
Treble driver 25mm Soft Dome
AV shield No
Sensitivity(2.83V @ 1m) 88dB
Recommended amplifier power 25-150W
Peak SPL 102dB
Nominal impedance 8Ω Compatible
Minimum impedance 3.7Ω
Frequency response (+/-3dB) 40Hz - 20kHz
Bass extension (-6dB) 37Hz
Crossover frequency 2.3kHz
Cabinet Volume (in litres) 35L
Height (on plinth & spikes) (938+25)mm
Width 196mm
Depth (with terminals) (306+28)mm
Carton size 420x310x1060mm
Net weight 17.8kg/pcs
Gross weight 21.2kg/ctn
Amplificator integrat Primare I22 + Boxe Wharfedale Diamond 230
